Pressure-Sensitive Labeling for Bottles, Cans, and Containers
Apply self-adhesive labels to round and non-round containers with the AB Technology Inline Labeler. Available configurations support full-wrap, partial-wrap, front-and-back, and top-and-bottom labeling at speeds up to 300 containers per minute, depending on the application.
Description

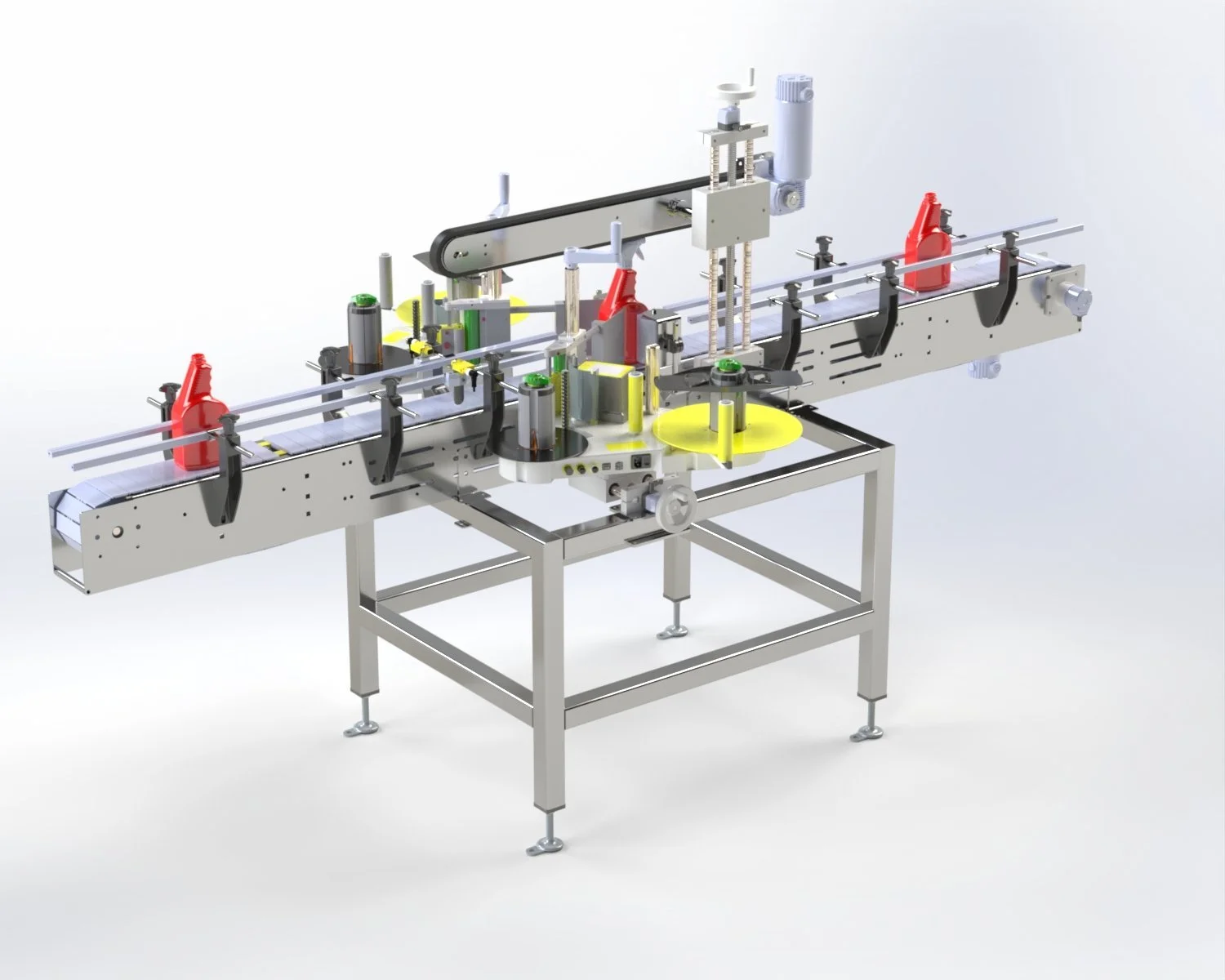

The AB Technology Inline Labeler provides automated label application for a range of container shapes and labeling requirements. Its modular design allows the machine to be configured for your product and incorporated into a new or existing packaging line.
Built on a welded stainless steel frame with a stainless steel chain conveyor, the machine combines a CAB Roxi label applicator with straightforward manual speed adjustment. Through the Excelis Automation family, labeling can be paired with SureKap capping machines and Volumetric Technologies filling equipment.
Features
Label applicator: CAB Roxi applicator with self-learning optimization for repeatable label placement
Wrap labeling: Belt and friction plate assembly for partial- and full-wrap labeling of round containers
Non-round container handling: Top-belt assembly maintains control during front, back, or front-and-back labeling
Top-and-bottom labeling: Available with add-on modules for dual-surface application
Modular construction: Welded stainless steel frame and standardized components simplify maintenance and support different configurations
Simple controls: Manual speed adjustment; no PLC required for the standard configuration
Line integration: Configurable conveyor direction supports installation in new or existing packaging lines
Specs
Model: AB007-20IL
Line speed: Up to 300 containers per minute, application dependent
Container types: Round and non-round bottles, cans, and containers
Container diameter: Up to 6 inches (152 mm)
Label type: Pressure-sensitive / self-adhesive
Label placements: Full wrap, partial wrap, front and back, or top and bottom, depending on configuration
Roll width: Up to 120 mm
Applicator speed: Up to 30 meters per minute (98 feet per minute)
Conveyor: 7-foot chain conveyor with 4.5-inch-wide chain
Drive: Compact 90 VDC motor with Oriental Motor controls
Product flow: Configurable left-to-right or right-to-left
Input power: 110 VAC / 240 VAC
Connect Filling, Capping, and Labeling
AB Technology and SureKap are both part of the Excelis Automation family. Pair AB Technology labeling equipment with SureKap capping machines and Volumetric Technologies filling equipment to support your packaging process.
Whether you’re adding a labeler to an existing line or planning a new system, our team can help evaluate the equipment and layout for your application.
